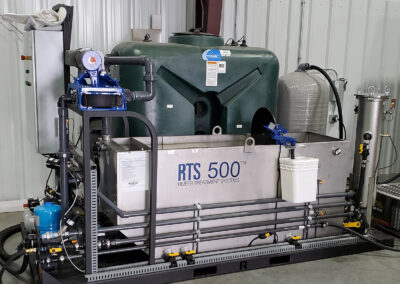

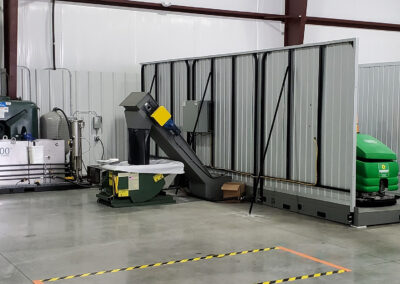

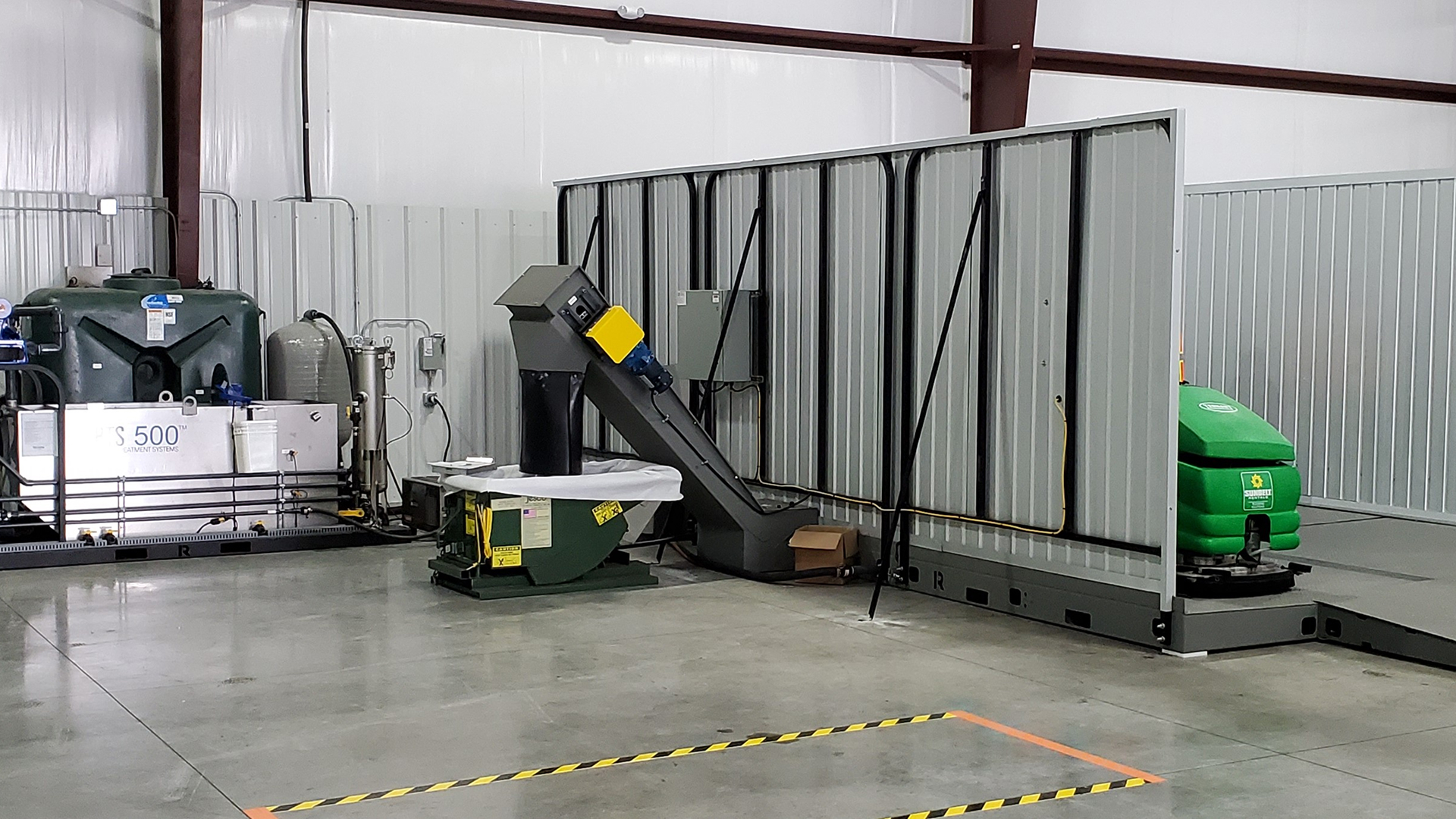

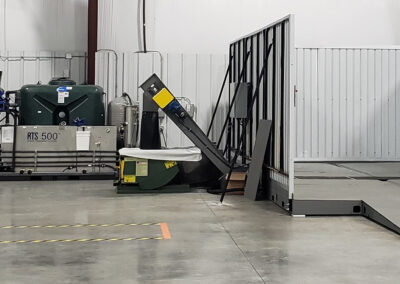

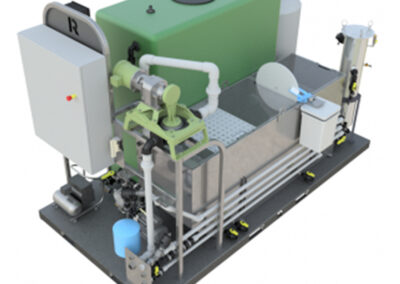

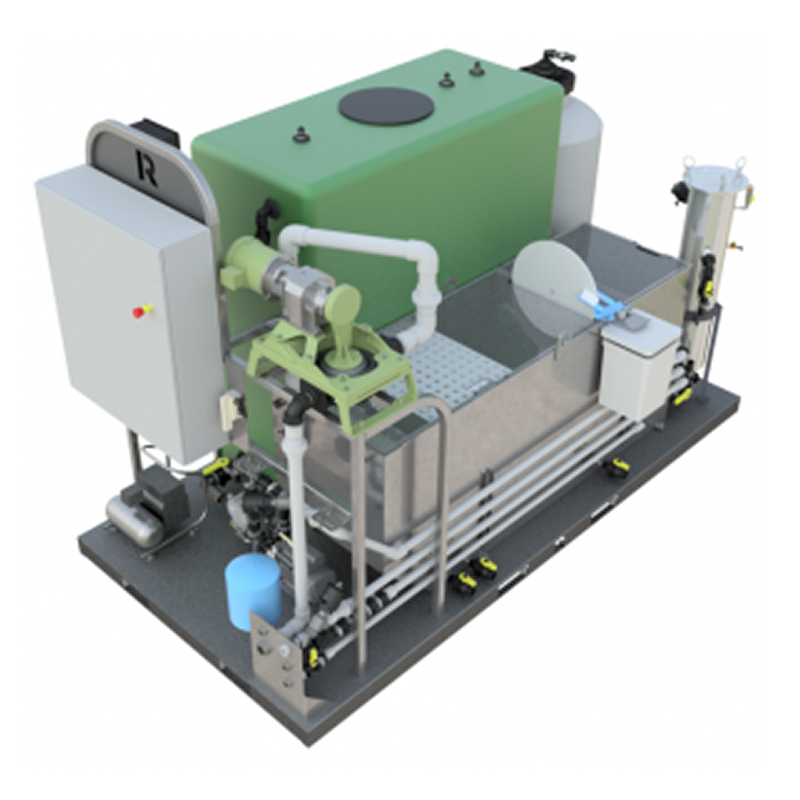

Standard Water Treatment System (RTS 500)
The Standard Treatment System (RTS 500) filters and treats wash water containing light solids and/or oils in preparation for reuse or compliant discharge. This compact system handles industrial parts degreasing and maintenance equipment washing with zero discharge capability. The RTS 500 uses inclined plate separators, oil coalescing and absolute filtration to deliver clean water in compliance with EPA and municipal regulations.
Download the Brochure
Get complete specifications and technical details.
RTS 500 Specifications
| Capacity/Max Load | 674-gallon weir tank plus 400-gallon holding tank |
|---|---|
| Mount / Mobility Type | Permanent |
| Power Source / Requirements | 208-240V single phase, NEMA L14-30 plug with 20ft power cord |
| Cycle Time | Up to 15 GPM water treatment process rate |
| Water Pressure / Flow Rate | Supplies water to connected equipment at 12 GPM delivery flow, 80-15,000 PSI delivery pressure |
| System Dimensions | 120 in x 60 in x 79 in |
| Chemical Management | Yes |
| Automated System | Yes |
| Wash Chemistry | Compatible with degreasing and cleaning solutions |
| Water Containment Details | Zero discharge closed-loop system |

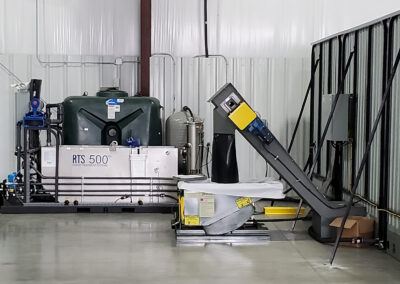

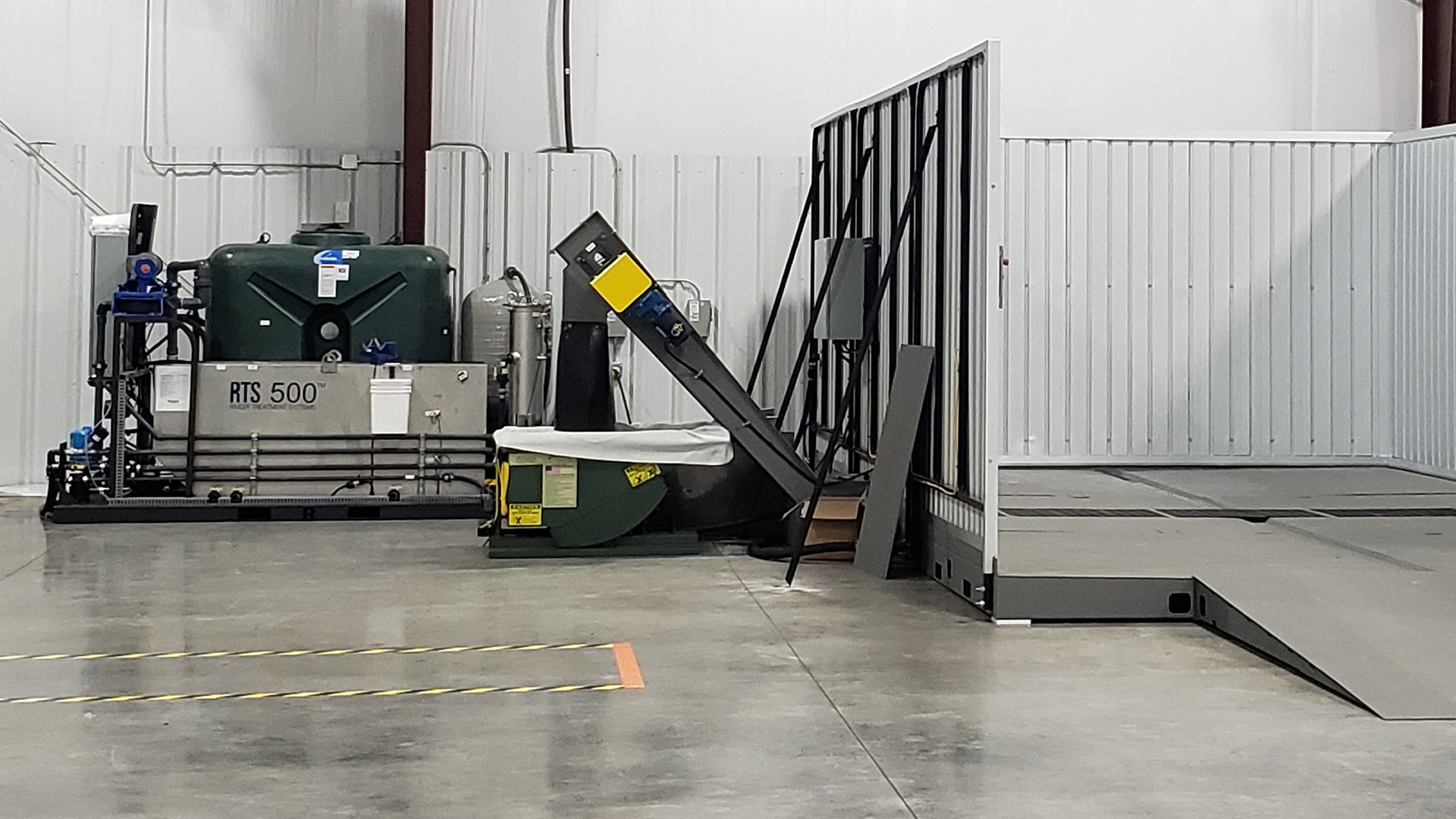

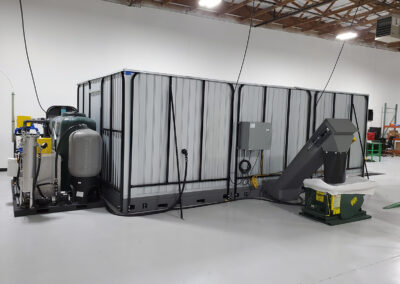

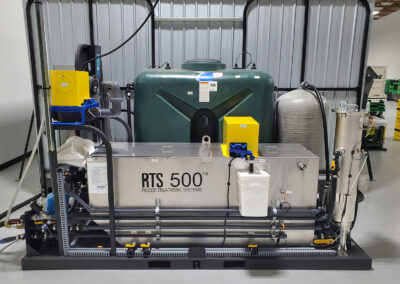

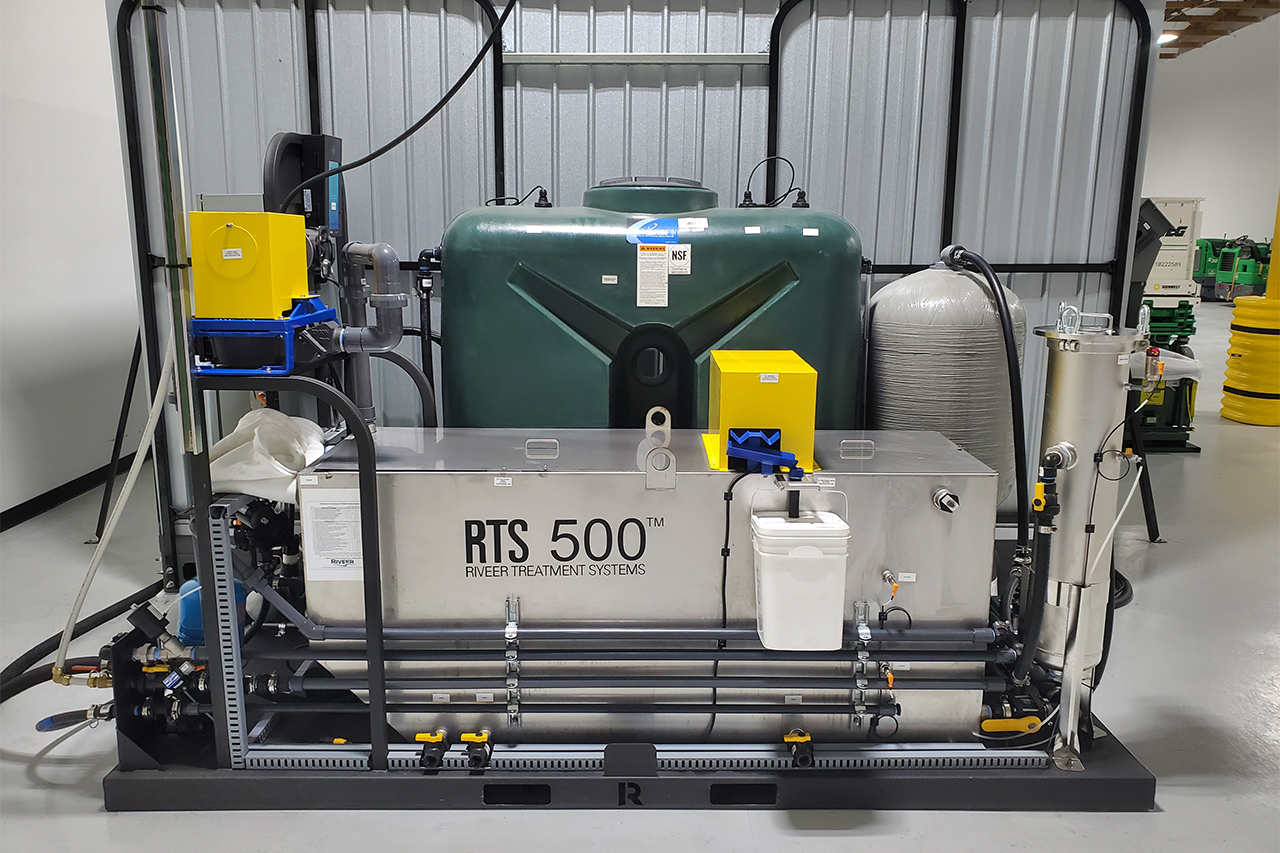

Image Gallery
Related Systems

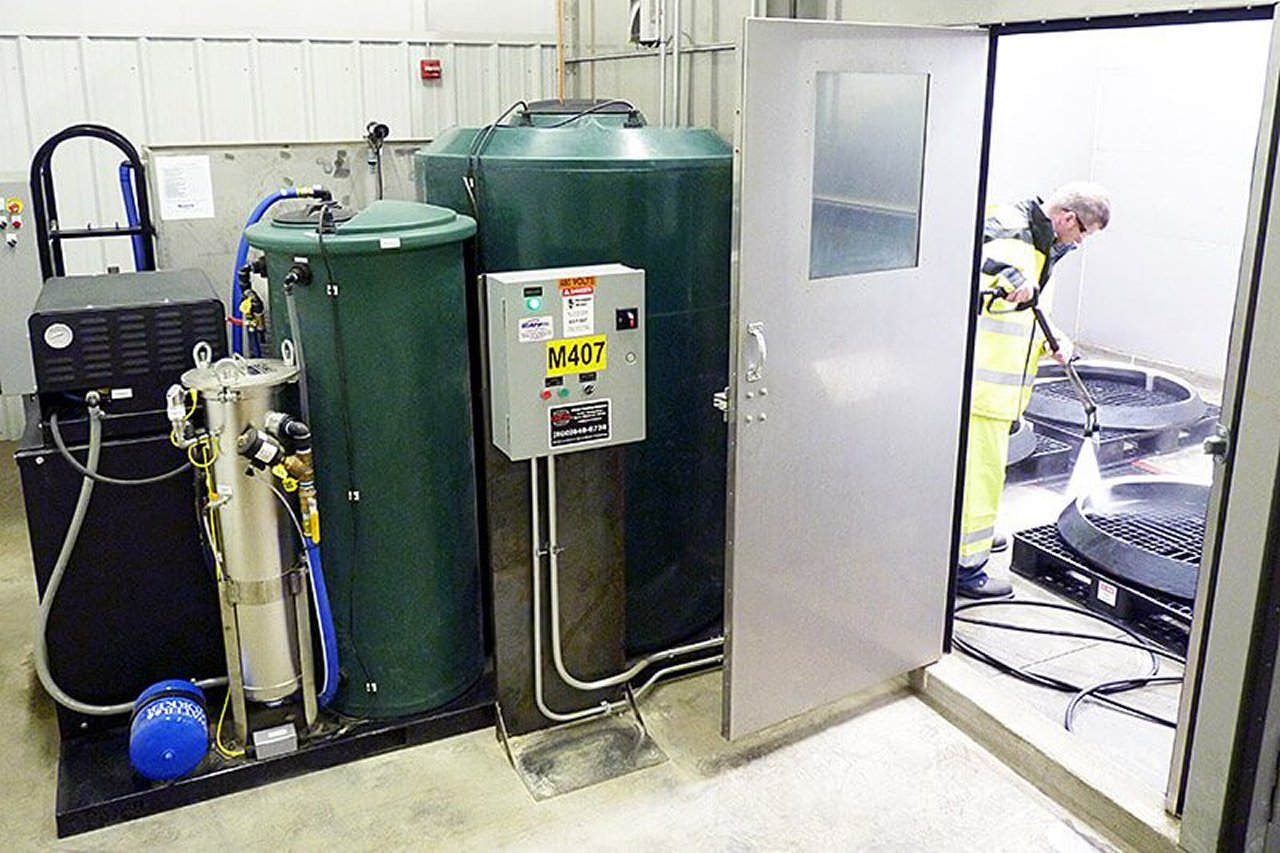

Intermediate Treatment System (RTS 3000)
