Automated Pretreatment Systems

Autowash Multi-Stage Pretreatment Systems

Riveer’s Autowash system is an industrial pretreatment washer that gives your operation the flexibility to wash, degrease, and pretreat parts of any size, shape or material for any application. From materials such as Aluminum and Mild Steel to parts of any size range, no challenge is too big or small. These systems are typically used in high-volume, large part variety operations such as pretreatment for paint, pretreatment for powder coating, or applying a conversion coating process.

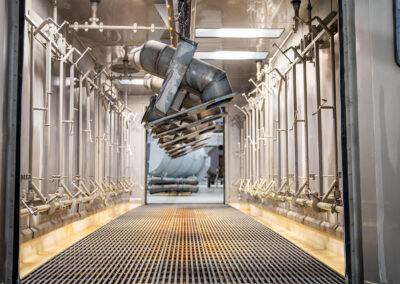

Riveer team members will work closely with you to design a fully integrated solution that is tailored to your specific operation needs, helping you achieve a better finish and a higher throughput. The system uses a stainless steel wash booth with ventilation, lighting and customizable product entry and exit doors to isolate, capture, and control all stages of the wash cycle for re-use, drastically saving chemical and water usage costs. Riveer systems have been used in varying chemical processes, applying 7 or more wash stages in a single booth, saving floor space over a traditional tunnel wash system.



Powerful Degreasing and Pretreatment

Riveer’s Autowash Pretreatment System increases efficiency for every stage of the treatment process.





Autowash System Features

  • Batch style, fully enclosed wash booth for high throughput applications
  • Reduced space needs over traditional conveyor wash systems
  • Increased operating pressures for quicker cycles and higher throughput
  • Automatic and repeatable process controls
  • Closed-loop options prevent chemical waste, reduce operating costs and water usage with EPA compliant zero-discharge designs that ensure environmental compliance
  • Increases operator health and safety through reduction of exposure to harsh cleaning chemicals, including safety switches on all entry and exit doors
  • Recycles all stages of the wash operation or process
  • Vacuum recovery during spray ensures minimal cross contamination between multiple stage process, extending the life of your chemical baths
  • Various filtration options to combat oils, soils and other contaminants
  • Customizable to any process to match your chemical and cleaning needs, including compatibility for systems that feature conveyors or overhead rails

automated Pretreatment System Specifications

Max Part Size Configurable to meet part requirements
Mount / Mobility Type Stationary
Power Source / Requirements Electrical, Natural Gas or Propane, City Water, Compressed Air
Cycle Time / Output Rate Variable based on booth and part time
Water Pressure / Flow Rate System pumps fluid at up to 300 GPM. Water Pressure: 80 – 100 PSI
Wash Chemistry Phosphate and zirconium pretreatment chemistry options available.

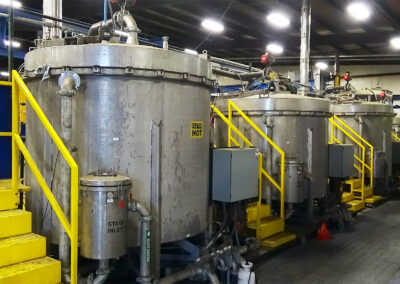

Water Containment Details Captures, recycles and replenishes water across stages. Includes 5,000-gallon crash tank.
Multi-Stage Options

Configurations from single stage up to 7 stages and beyond
